本文将介绍如何在 IntelliJ IDEA 中配置 MyBatis-Plus 代码生成工具,以便快速生成符合项目需求的实体类、Mapper 接口、XML 映射文件等代码。

chou403

/ Tool

/ c:

/ u:

/ 9 min read

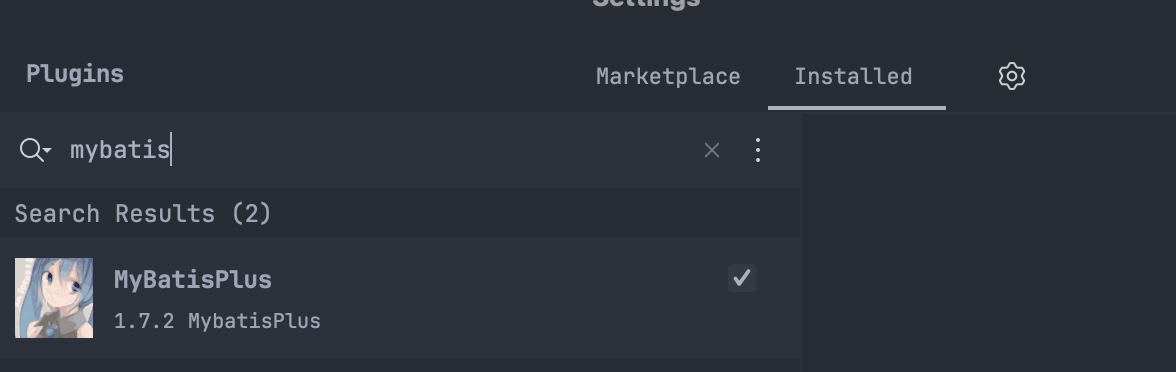

IDEA 安装插件 MybatisPlus 生成代码

202403162046262

IDEA 导航栏 tools 找到一些内容 202403162046992

Config Database

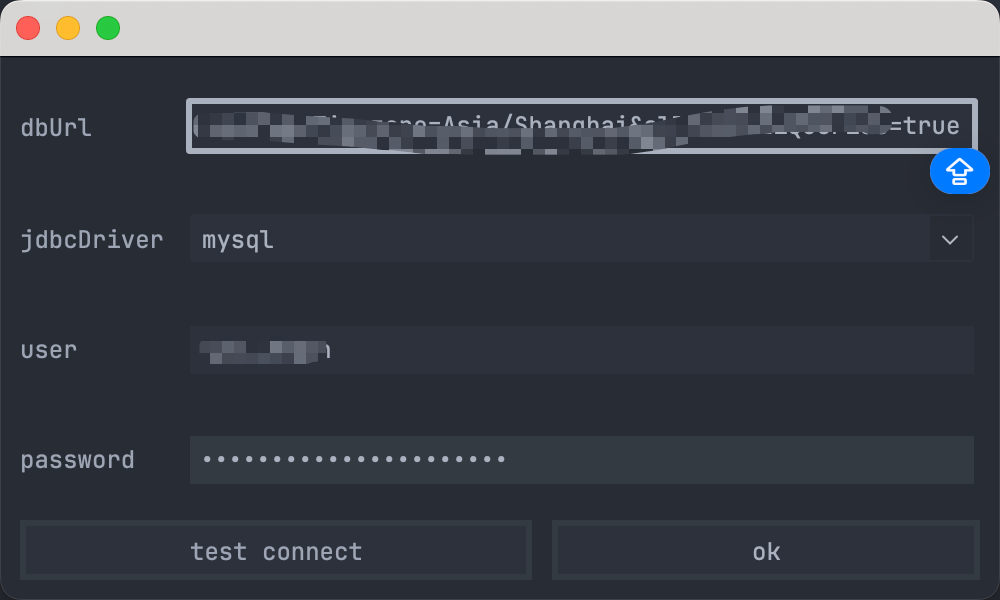

点击 Config Database 配置数据库连接

202403162049146

Config Generator

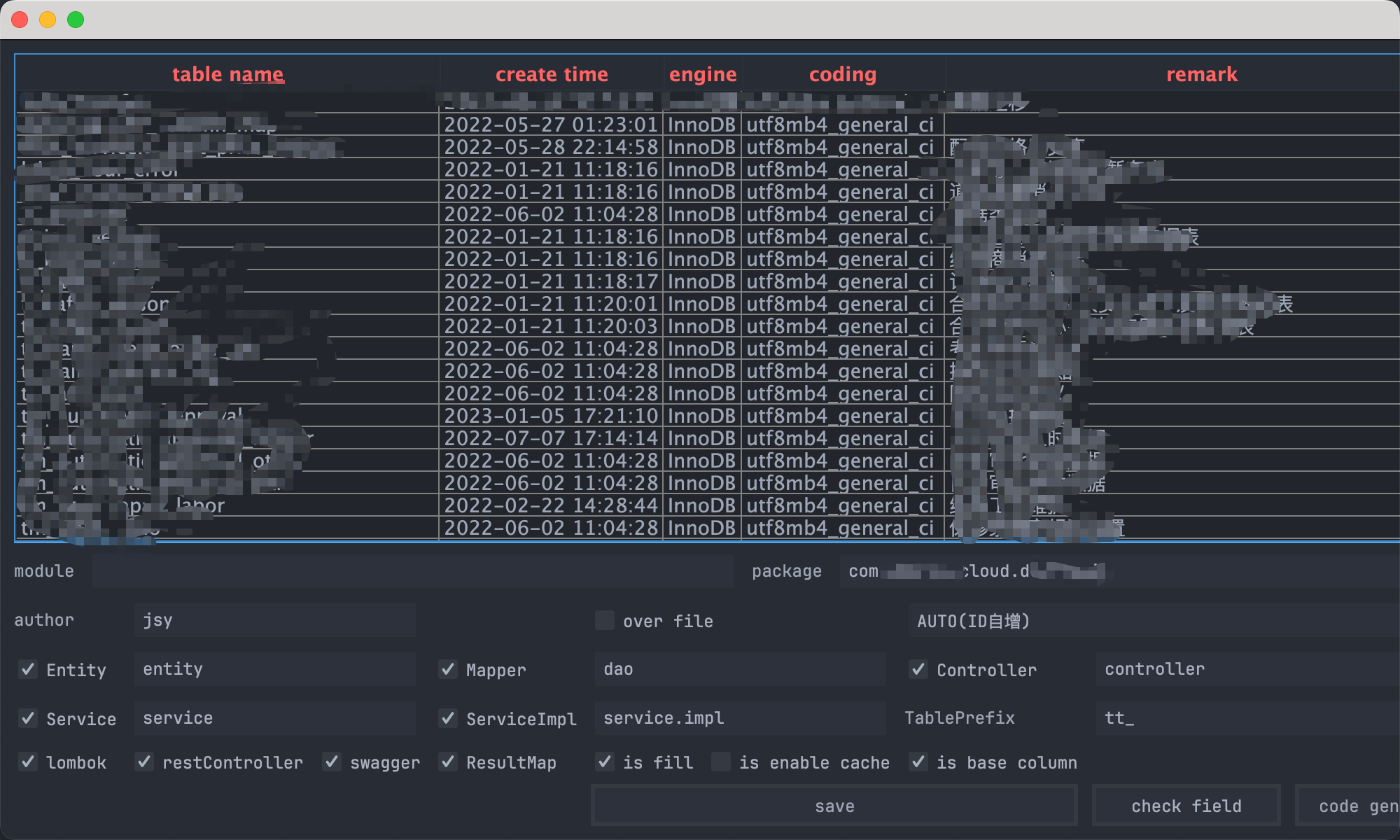

配置数据库连接结束,点击 Config Generator

202403162052413

选中需要生成代码的表 点击 code Generator 即可

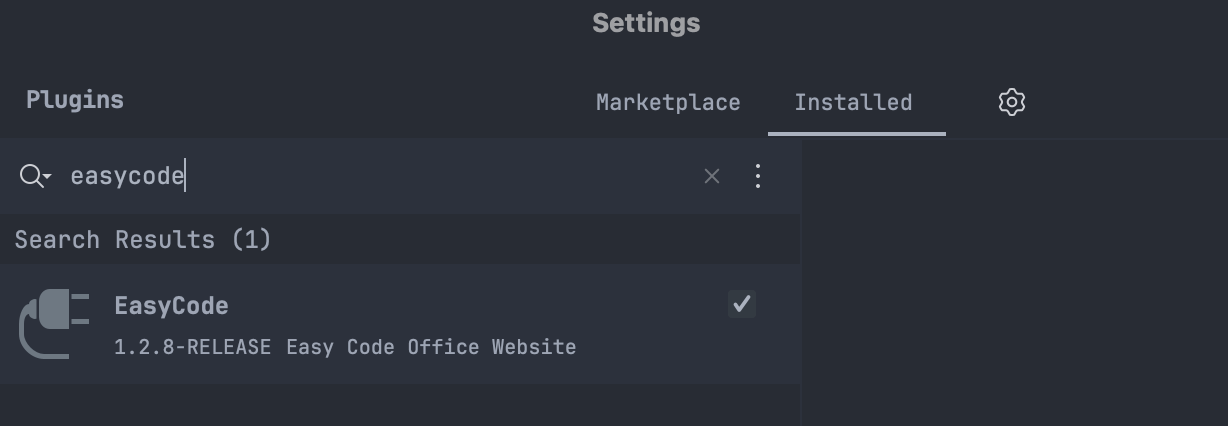

IDEA 结合 EasyCode 生成代码

202403162055314

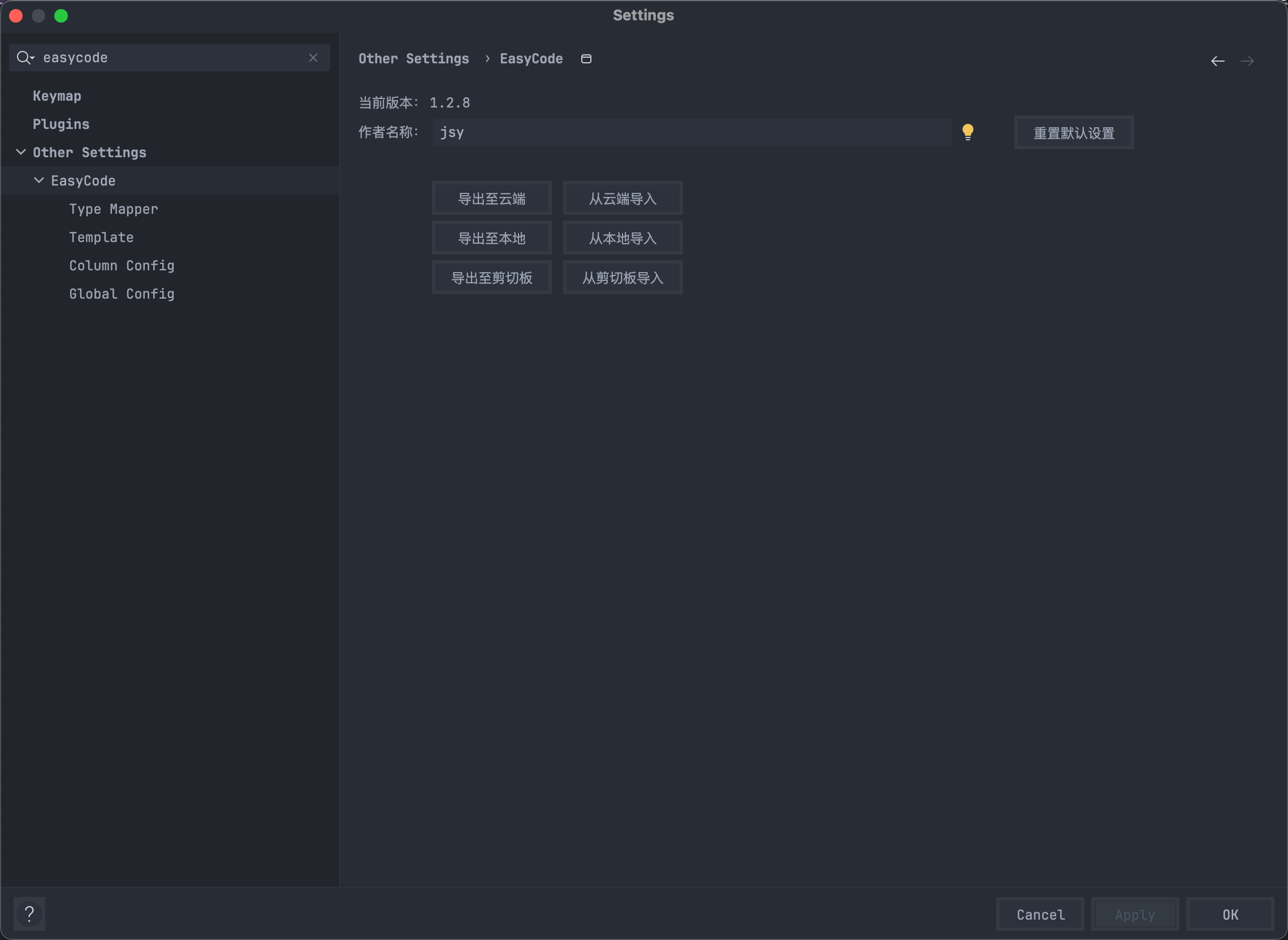

IDEA setting 配置中找到 EasyCode 可设置作者名称 202403162056007

Template

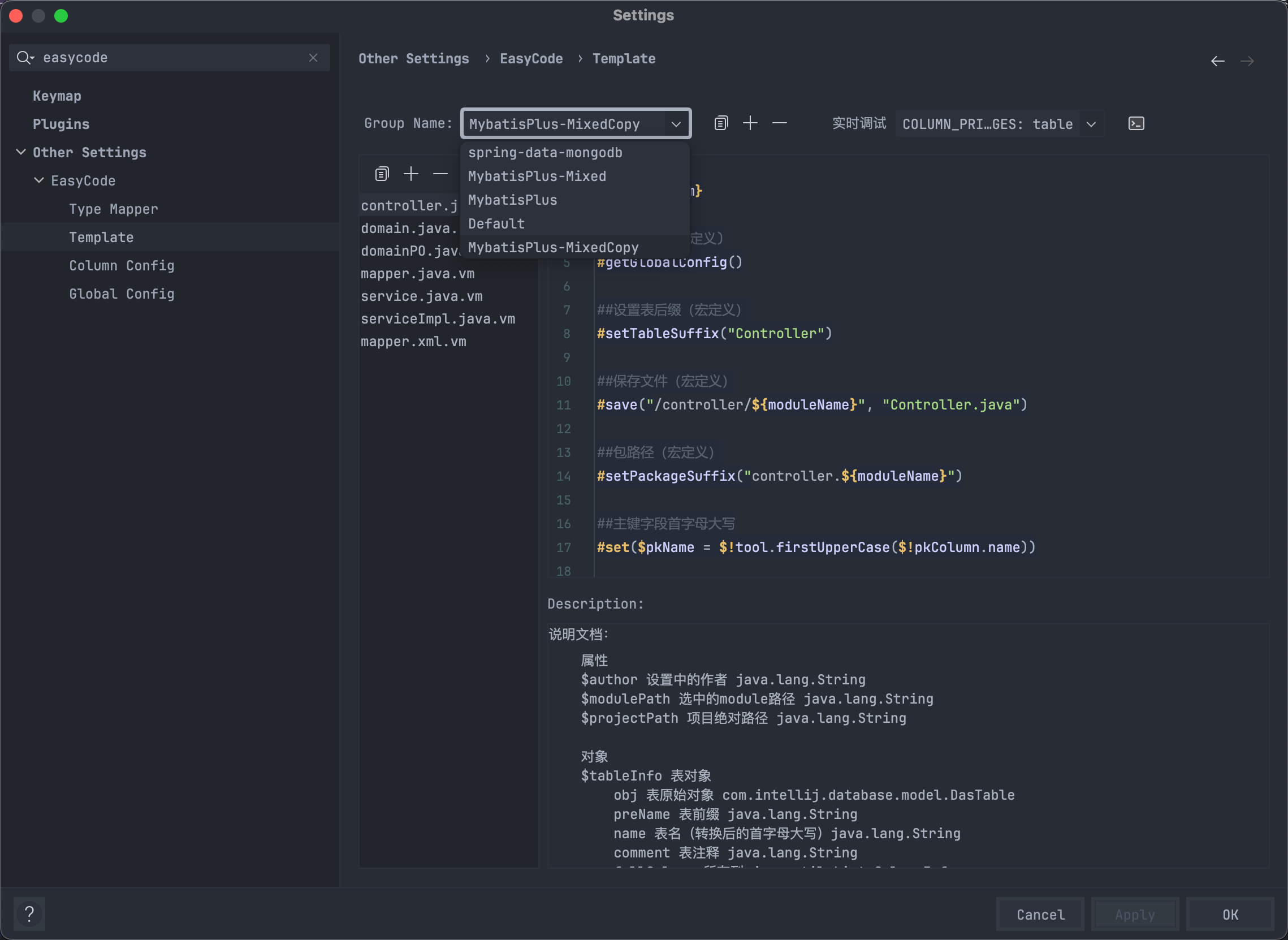

template 中有多个模版可以选择,若不合适也可以自己配置想要的模版 202403162057554

以下为自己目前调整的模版

controller.java.vm
   ###导入宏定义
$!{define.vm}

###配置变量(宏定义)
#getGlobalConfig()

###设置表后缀(宏定义)
#setTableSuffix("Controller")

###保存文件(宏定义)
#save("/controller/${moduleName}", "Controller.java")

###包路径(宏定义)
#setPackageSuffix("controller.${moduleName}")

#set($requestUrl = $!tool.hump2Underline(${moduleName}).replace("_", "/"))

###主键字段首字母大写
#set($pkName = $!tool.firstUpperCase($!pkColumn.name))
import com.baomidou.mybatisplus.core.metadata.IPage;
import com.yonyou.cloud.dcsrepair.entity.dto.ttClaimCheckOrder.TtClaimCheckOrderDTO;
import com.yonyou.cloud.dcsrepair.entity.vo.ttClaimCheckOrder.TtClaimCheckOrderVO;
import com.yonyou.cloud.dcsrepair.service.ttClaimCheckOrder.ITtClaimCheckOrderService;
import com.yonyou.cloud.dcsrepair.util.PageUtils;
import com.yonyou.dmscloud.framework.service.excel.ExcelGenerator;
import io.swagger.annotations.Api;
import io.swagger.annotations.ApiOperation;
import org.springframework.web.bind.annotation.*;

import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;
import java.util.List;

/**
 * ${functionName}Controller
 *
 * @author ${author}
 * @since ${datetime}
 */
@Api(value = "${functionName}controller", tags = {"${functionName}controller"})
@RestController
@RequestMapping("/${requestUrl}")
@RequiredArgsConstructor
public class ${ClassName}Controller {

    private final I${ClassName}Service ${className}Service;

    private final ExcelGenerator excelGenerator;

    /**
     * 查询${functionName}分页列表
     */
    @GetMapping(path = "/page/query")
    @ApiOperation(value = "分页列表${functionName}", notes = "分页${functionName}")
    public IPage<${ClassName}VO> ${businessName}PageQuery(${ClassName}DTO requestDTO) {
        return ${className}Service.select${ClassName}List(requestDTO, PageUtils.getPageParam());
    }

    /**
     * 查询${functionName}列表-不分页
     */
    @GetMapping(path = "/all/query")
    @ApiOperation(value = "不分页列表${functionName}", notes = "不分页查询${functionName}")
    public List<${ClassName}VO> ${businessName}AllQuery(${ClassName}DTO requestDTO) {
        return ${className}Service.select${ClassName}List(requestDTO);
    }

    /**
     * 进行新增${functionName}数据
     *
     * @param ${className}DTO 需要保存的DTO
     * @return int
     * @author ${author}
     * @since ${datetime}
     */
    @PostMapping("/insert")
    @ApiOperation(value = "${functionName}新增数据", notes = "${functionName}新增数据")
    public int ${businessName}Insert(@RequestBody ${ClassName}DTO ${className}DTO) {
        return ${className}Service.insert${ClassName}(${className}DTO);
    }

    /**
     * ${functionName}导出
     *
     * @param
     * @return
     * @author ${author}
     * @since ${datetime}
     */
    @GetMapping("/export")
    @ApiOperation("${functionName}导出")
    public void ${businessName}Export(${ClassName}DTO ${className}DTO, HttpServletRequest request, HttpServletResponse response) {
        // 按需实现
        /*
        // List<Map> dataList = null;
        HashMap<String, List<Map>> excelData = new HashMap<>(1024);
        excelData.put("${functionName}导出", dataList);
        List<ExcelExportColumn> exportColumnList = new ArrayList<>();
        // exportColumnList.add(new ExcelExportColumn("bigAreaName", "大区"));
        // exportColumnList.add(new ExcelExportColumn("customerType", "客户类型", ExcelDataType.Dict));
        // exportColumnList.add(new ExcelExportColumn("productDate", "生产日期","yyyy-MM-dd"));
        // exportColumnList.add(new ExcelExportColumn("submitDate", "提交时间","yyyy-MM-dd HH:mm:ss"));

        try {
            request.setCharacterEncoding("UTF-8");
        } catch (UnsupportedEncodingException e) {
            e.printStackTrace();
        }
        response.setContentType("application/vnd.ms-excel;charset=utf-8");
        response.setHeader("Content-Disposition", "attachment; filename=_${functionName}导出.xls");
        excelGenerator.generateExcel(excelData, exportColumnList, "_${functionName}导出.xls", request, response);
        */
    }

}
dto.java.vm
   ###导入宏定义
$!{define.vm}

###配置变量(宏定义)
#getGlobalConfig()

###设置表后缀(宏定义)
#setTableSuffix("DTO")

###保存文件(宏定义)
#save("/entity/dto/${moduleName}", "DTO.java")

###包路径(宏定义)
#setPackageSuffix("entity.dto.${moduleName}")

###自动导入包(全局变量)
$!autoImport
import com.fasterxml.jackson.annotation.JsonFormat;
import com.yonyou.dmscloud.framework.base.dto.BaseDTO;
import com.yonyou.dmscloud.framework.base.po.BasePO;
import com.yonyou.dmscloud.framework.util.bean.BeanMapperUtil;
import io.swagger.annotations.ApiModel;
import io.swagger.annotations.ApiModelProperty;
import lombok.Data;
import lombok.EqualsAndHashCode;
import org.springframework.format.annotation.DateTimeFormat;

import java.io.Serializable;
import java.math.BigDecimal;
import java.util.Date;

#tableComment("表实体类")
@Data
@EqualsAndHashCode(callSuper = true)
@ApiModel(value = "${className}DTO对象", description = "${tableComment}")
public class ${ClassName}DTO extends BaseDTO implements Serializable {

    private static final long serialVersionUID = 1L;

#foreach ($column in $tableInfo.fullColumn)
    @ApiModelProperty(value = "$column.comment")
    #if($!{tool.getClsNameByFullName($column.type)} == "Date")
    @DateTimeFormat(pattern = "yyyy-MM-dd HH:mm:ss")
    @JsonFormat(pattern = "yyyy-MM-dd HH:mm:ss")
    #end
    private $!{tool.getClsNameByFullName($column.type)} $!{column.name};

    #if($!{tool.getClsNameByFullName($column.type)} == 'Date')
    @ApiModelProperty(value = "$column.comment开始日期")
    private String ${column.name}Begin;

    @ApiModelProperty(value = "$column.comment结束日期")
    private String ${column.name}End;

    #end
#end
#foreach ($column in $tableInfo.pkColumn)
    /**
     * 将DTO 信息转化为 PO
     *
     * @param po 需要进行转换的po
     * @author ${author}
     * @since ${time.currTime()}
     */
    public <T extends BasePO<T>> void transDtoToPo(T po) {
        BeanMapperUtil.copyProperties(this, po, "$column.name");
    }
#end
#if($table.sub)
    /** $table.subTable.functionName信息 */
    private List<${subClassName}> ${subclassName}List;

#end
}
po.java.vm
   ###导入宏定义
$!{define.vm}

###配置变量(宏定义)
#getGlobalConfig()

###设置表后缀(宏定义)
#setTableSuffix("PO")

###保存文件(宏定义)
#save("/entity/po/${moduleName}", "PO.java")

###包路径(宏定义)
#setPackageSuffix("entity.po.${moduleName}")

###主键字段
#set($pkName = $!tool.firstUpperCase($!pkColumn.name))
#set($javaType = $!tool.getClsNameByFullName($!pkColumn.type))

###自动导入包(全局变量)
$!autoImport
import com.baomidou.mybatisplus.annotation.TableField;
import com.baomidou.mybatisplus.annotation.TableName;
import com.yonyou.dmscloud.framework.base.dto.BaseDTO;
import com.yonyou.dmscloud.framework.base.po.BasePO;
import com.yonyou.dmscloud.framework.util.bean.BeanMapperUtil;
import lombok.Data;
import lombok.EqualsAndHashCode;

import java.math.BigDecimal;
import java.util.Date;

#tableComment("")
@Data
@EqualsAndHashCode(callSuper = true)
@TableName("${tableInfo.obj.name}")
public class ${ClassName}PO extends BasePO<${ClassName}PO>{
    private static final long serialVersionUID = 1L;

#foreach ($column in $tableInfo.fullColumn)
    /** $column.comment */
#if($column.obj.name == $pkColumn.name)
    @TableId(value = "$column.name", type = IdType.AUTO)
#else
    @TableField("$column.obj.name")
#end
    private $!{tool.getClsNameByFullName($column.type)} $column.name;

#if($column.obj.name == $pkColumn.name)
    @Override
    protected Serializable pkVal() {
        return this.$column.name;
    }

#end
#end
    /**
     * 将PO 信息转化为DTO
     *
     * @param dtoClass 需要进行转换的dtoClass
     * @author ${author}
     * @since ${time.currTime()}
     */
    public <T extends BaseDTO> T transPoToDto(Class<T> dtoClass) {
        return super.transDtoToPo(dtoClass);
    }
#foreach ($column in $tableInfo.pkColumn)

    /**
     * 将PO 信息转化为DTO
     *
     * @param dto 需要进行转换的dto
     * @author ${author}
     * @since ${time.currTime()}
     */
    public <T extends BaseDTO> void transPoToDto(T dto) {
        BeanMapperUtil.copyProperties(this, dto, "$column.name");
    }
#end

}
vo.java.vm
   ###导入宏定义
$!{define.vm}

###配置变量(宏定义)
#getGlobalConfig()

###设置表后缀(宏定义)
#setTableSuffix("VO")

###保存文件(宏定义)
#save("/entity/vo/${moduleName}", "VO.java")

###包路径(宏定义)
#setPackageSuffix("entity.vo.${moduleName}")

###自动导入包(全局变量)
$!autoImport
import com.fasterxml.jackson.annotation.JsonFormat;
import io.swagger.annotations.ApiModel;
import io.swagger.annotations.ApiModelProperty;
import lombok.Data;
import org.springframework.format.annotation.DateTimeFormat;

import java.io.Serializable;
import java.math.BigDecimal;
import java.util.Date;

#tableComment("返回 VO")
@Data
@ApiModel(value = "${className}VO对象", description = "${tableComment}")
public class ${ClassName}VO implements Serializable {

    private static final long serialVersionUID = 1L;

#foreach ($column in $tableInfo.fullColumn)
    @ApiModelProperty(value = "$column.comment")
    #if($!{tool.getClsNameByFullName($column.type)} == "Date")
    @DateTimeFormat(pattern = "yyyy-MM-dd HH:mm:ss")
    @JsonFormat(pattern = "yyyy-MM-dd HH:mm:ss")
    #end
    private $!{tool.getClsNameByFullName($column.type)} $!{column.name};

#end
}
mapper.java.vm
   ###导入宏定义
$!{define.vm}

###配置变量(宏定义)
#getGlobalConfig()

###设置表后缀(宏定义)
#setTableSuffix("Mapper")

###保存文件(宏定义)
#save("/dao/${moduleName}", "Mapper.java")

###包路径(宏定义)
#setPackageSuffix("dao.${moduleName}")

###主键字段
#set($pkName = $!tool.firstUpperCase($!pkColumn.name))
#set($javaType = $!tool.getClsNameByFullName($!pkColumn.type))
import com.baomidou.mybatisplus.core.mapper.BaseMapper;
import com.baomidou.mybatisplus.extension.plugins.pagination.Page;
import ${packageName}.entity.dto.${moduleName}.${ClassName}DTO;
import ${packageName}.entity.po.${moduleName}.${ClassName}PO;
import ${packageName}.entity.vo.${moduleName}.${ClassName}VO;
import org.apache.ibatis.annotations.Param;

import java.util.List;

/**
 * ${functionName}Mapper接口
 *
 * @author ${author}
 * @since ${datetime}
 */
public interface ${ClassName}Mapper extends BaseMapper<${ClassName}PO> {

    /**
     * 查询${functionName}列表
     *
     * @param ${className} ${functionName}
     * @return ${functionName}集合
     */
    List<${ClassName}VO> select${ClassName}List(@Param("params") ${ClassName}DTO ${className},@Param("page") Page<${ClassName}VO> page);

    /**
     * 查询${functionName}列表-不分页
     *
     * @param ${className} ${functionName}
     * @return ${functionName}集合
     */
    List<${ClassName}VO> select${ClassName}List(@Param("params") ${ClassName}DTO ${className});

}
service.java.vm
   ###导入宏定义
$!{define.vm}

###配置变量(宏定义)
#getGlobalConfig()

###设置表后缀(宏定义)
#setTableSuffix("Service")

###设置回调
$!callback.setFileName($tool.append("I", $tableName, ".java"))
$!callback.setSavePath($tool.append($tableInfo.savePath, "/service/${moduleName}"))

###包路径(宏定义)
#setPackageSuffix("service.${moduleName}")

###主键字段
#set($pkName = $!tool.firstUpperCase($!pkColumn.name))
#set($javaType = $!tool.getClsNameByFullName($!pkColumn.type))

import com.baomidou.mybatisplus.core.metadata.IPage;
import com.baomidou.mybatisplus.extension.service.IService;
import com.baomidou.mybatisplus.extension.plugins.pagination.Page;
import com.yonyou.dmscloud.framework.domain.RequestPageInfoDto;
import ${packageName}.entity.dto.${moduleName}.${ClassName}DTO;
import ${packageName}.entity.po.${moduleName}.${ClassName}PO;
import ${packageName}.entity.vo.${moduleName}.${ClassName}VO;

import java.util.List;

/**
 * ${functionName}Service接口
 *
 * @author ${author}
 * @since ${datetime}
 */
public interface I${ClassName}Service extends IService<${ClassName}PO>{

    /**
     * 查询${functionName}列表
     *
     * @param ${className} ${functionName}
     * @return ${functionName}集合
     */
    IPage<${ClassName}VO> select${ClassName}List(${ClassName}DTO ${className}, Page<${ClassName}VO> page);

    /**
     * 查询${functionName}列表
     *
     * @param ${className} ${functionName}
     * @return ${functionName}集合
     */
    List<${ClassName}VO> select${ClassName}List(${ClassName}DTO ${className});

    /**
     * 新增${functionName}
     *
     * @param ${className} ${functionName}
     * @return 结果
     */
    int insert${ClassName}(${ClassName}DTO ${className});

}
serviceImpl.java.vm
   ###导入宏定义
$!{define.vm}

###配置变量(宏定义)
#getGlobalConfig()

###设置表后缀(宏定义)
#setTableSuffix("ServiceImpl")

###保存文件(宏定义)
#save("/service/${moduleName}/impl", "ServiceImpl.java")

###包路径(宏定义)
#setPackageSuffix("service.${moduleName}.impl")

###主键字段
#set($pkName = $!tool.firstUpperCase($!pkColumn.name))
#set($javaType = $!tool.getClsNameByFullName($!pkColumn.type))

import com.baomidou.mybatisplus.core.metadata.IPage;
import com.baomidou.mybatisplus.extension.plugins.pagination.Page;
import com.baomidou.mybatisplus.extension.service.impl.ServiceImpl;
import ${packageName}.dao.${moduleName}.${ClassName}Mapper;
import ${packageName}.entity.dto.${moduleName}.${ClassName}DTO;
import ${packageName}.entity.po.${moduleName}.${ClassName}PO;
import ${packageName}.entity.vo.${moduleName}.${ClassName}VO;
import ${packageName}.service.${moduleName}.I${ClassName}Service;
import org.springframework.stereotype.Service;
import org.springframework.transaction.annotation.Transactional;

import java.util.List;

/**
 * ${functionName}Service业务层处理
 *
 * @author ${author}
 * @since ${datetime}
 */
@Service
@RequiredArgsConstructor
public class ${ClassName}ServiceImpl extends ServiceImpl<${ClassName}Mapper, ${ClassName}PO> implements I${ClassName}Service {

    private final ${ClassName}Mapper ${className}Mapper;

    /**
     * 查询${functionName}列表
     *
     * @param ${className} ${functionName}
     * @return ${functionName}
     */
    @Override
    public IPage<${ClassName}VO> select${ClassName}List(${ClassName}DTO ${className}, Page<${ClassName}VO> page) {
        List<${ClassName}VO> result = ${className}Mapper.select${ClassName}List(${className},page);
        return page.setRecords(result);
    }

    /**
     * 查询${functionName}列表
     *
     * @param ${className} ${functionName}
     * @return ${functionName}
     */
    @Override
    public List<${ClassName}VO> select${ClassName}List(${ClassName}DTO ${className}) {
        return ${className}Mapper.select${ClassName}List(${className});
    }

    /**
     * 新增${functionName}
     *
     * @param ${className} ${functionName}
     * @return 结果
     */
    @Override
    @Transactional(rollbackFor = Exception.class)
    public int insert${ClassName}(${ClassName}DTO ${className}) {
        ${ClassName}PO po = new ${ClassName}PO();
        ${className}.transDtoToPo(po);
        return ${className}Mapper.insert(po);
    }

}
mapper.xml.vm
   ###引入mybatis支持
$!{mybatisSupport.vm}
$!{define.vm}

###配置变量(宏定义)
#getGlobalConfig()

###设置保存名称与保存位置
$!callback.setFileName($tool.append($!{tableInfo.name}, "Mapper.xml"))
$!callback.setSavePath($tool.append($modulePath, "/src/main/resources/mapper/${moduleName}"))

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE mapper PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN" "http://mybatis.org/dtd/mybatis-3-mapper.dtd">
<mapper namespace="$!{tableInfo.savePackageName}.dao.${moduleName}.$!{tableInfo.name}Mapper">

    <sql id="select${ClassName}Vo">
        select#foreach($column in $tableInfo.fullColumn) A.$column.obj.name#if($foreach.hasNext),#end#end from ${tableInfo.obj.name} A
    </sql>

    <select id="select${ClassName}List" resultType="${packageName}.entity.vo.${moduleName}.${ClassName}VO">
        <include refid="select${ClassName}Vo"/>

    </select>

</mapper>

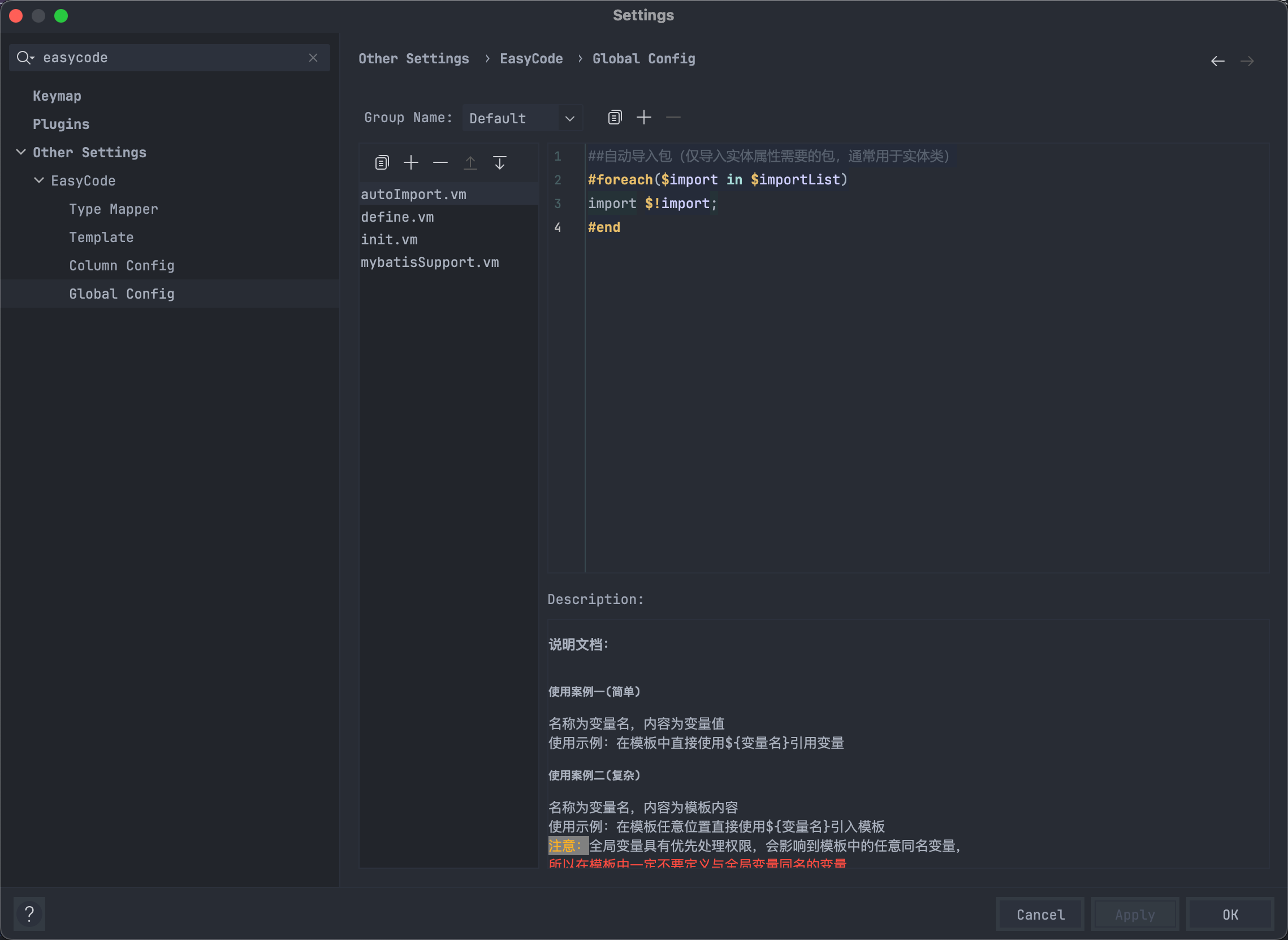

Global Config

202403162105900

内容可根据需要自行增加以及调整。

define.vm 增减了部分全局变量

   ###定义全局变量配置
#macro(getGlobalConfig)
    #if(!$tableInfo.pkColumn.isEmpty())
        #set($pkColumn = $tableInfo.pkColumn.get(0))
    #end

    #set($packageName = $!tableInfo.savePackageName)
    #set($className = $!tool.firstLowerCase($!tableInfo.name))
    #set($moduleName = $!tool.firstLowerCase($!tableInfo.name))
    #set($businessName = $!tool.firstLowerCase($!tableInfo.name))
    #set($ClassName = $!tableInfo.name)
    #set($functionName = $!tableInfo.comment)
    #set($tableComment = $!tableInfo.comment)
    #set($datetime = $!time.currTime())
    #set($tableName = $!tableInfo.obj.name)
#end

疑问

mapper.xml文件中出现字段无逗号分割情况:

找到以下位置:

  1. Template下的 mapper.xml.vm脚本
  2. Global Config下的 mybatisSupport.vm脚本

将其中的 $velocityHasNext 替换成 $foreach.hasNext 即可。

#tool #mybatisplus
